Brownsburg Electronik inc.

TRANSFORMATEUR - PUISSANCE - HSS-HDS

hhCaractéristiques

H
S
S
-
H
D
S

Puissance disponible de 2.5 à 56 VA.
Montage horizontal sur plaquette de circuit imprimé.
Bobine à deux fenêtres avec couvert extérieur supplémentaire.
Tension primaire simple ou double.
Isolation classe F – 155 °C.
Approuvé CSA (LR63462) et reconnu UL (E193917).
Connexion secondaire en parallèle ou en série.
Autre tension primaire et secondaire disponible.
4000 V d'isolation entre primaire et secondaire..

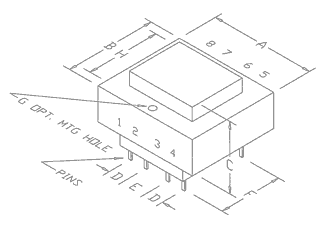

sdDimensions											H S S - H D S

Dim. VA	A	B	C	D	E	F	Patte Dim	H	Montage G (boulon)	lbs
2.5	1.63	1.31	1.13	.20	.25	1.00	.025 sq.	1.06	2 x #4	0.25
5.0	1.63	1.31	1.38	.20	.40	1.00	.025 sq.	1.06	2 x #4	0.37
10.0	1.88	1.56	1.38	.20	.40	1.14	.038 sq.	1.25	2 x #4	0.53
20.0	2.25	1.88	1.63	.40	.40	1.46	.038 sq.	1.50	2 x #4	0.90
30.0	2.63	2.19	1.63	.55	.28	1.68	.045 sq.	1.75 x 2.18	4 x #6	1.15
56.0	3.00	2.50	1.81	.60	.30	1.90	.045 sq.	2.00 x 2.50	4 x #6	1.70
Dimensions en pouces. Dimensions 36 VA avec 4 trous de montage.

ahModèles

HSS Primaire simple 115V 50/60Hz ( pattes 2 et 3 omis)	HDS Primaire double 115/230V 50/60Hz

Primaire		Dimension VA	Secondaire (RMS)
HS Num. cat 115V 50/60Hz simple (6 pattes)	HD Num. cat. 115/230V 50/60Hz double (8 patttes)	Dimension VA	Série	Parallèle
HSS10E2 HSS10F2 HSS10G2 HSS10H2 HSS10J2 HSS10L2	HDS10E2 HDS10F2 HDS10G2 HDS10H2 HDS10J2 HDS10L2	2.5 5.0 10.0 20.2 30.0 56.0	10 VCT @ .25 A 10 VCT @ .50 A 10 VCT @ 1.00 A 10 VCT @ 2.00 A 10 VCT @ 3.00 A 10 VCT @ 5.60 A	5 V @ .50 A 5 V @ 1.0 A 5 V @ 2.0 A 5 V @ 4.0 A 5 V @ 6.0 A 5 V @ 11.2 A
HSS12E2 HSS12F2 HSS12G2 HSS12H2 HSS12J2 HSS12L2	HDS12E2 HDS12F2 HDS12G2 HDS12H2 HDS12J2 HDS12L2	2.5 5.0 10.0 20.2 30.0 56.0	12.6 VCT @ .20 A 12.6 VCT @ .40 A 12.6 VCT @ .80 A 12.6 VCT @ 1.60 A 12.6 VCT @ 2.40 A 12.6 VCT @ 4.40 A	6.3 V @ .40 A 6.3 V @ .80 A 6.3 V @ 1.60 A 6.3 V @ 3.20 A 6.3 V @ 4.80 A 6.3 V @ 8.80 A
HSS16E2 HSS16F2 HSS16G2 HSS16H2 HSS16J2 HSS16L2	HDS16E2 HDS16F2 HDS16G2 HDS16H2 HDS16J2 HDS16L2	2.5 5.0 10.0 20.2 30.0 56.0	16 VCT @ .15 A 16 VCT @ .31 A 16 VCT @ .62 A 16 VCT @ 1.25 A 16 VCT @ 1.90 A 16 VCT @ 3.50 A	8 V @ .30 A 8 V @ .62 A 8 V @ 1.25 A 8 V @ 2.50 A 8 V @ 3.80 A 8 V @ 7.00 A
HSS20E2 HSS20F2 HSS20G2 HSS20H2 HSS20J2 HSS20L2	HDS20E2 HDS20F2 HDS20G2 HDS20H2 HDS20J2 HDS20L2	2.5 5.0 10.0 20.2 30.0 56.0	20 VCT @ .12 A 20 VCT @ .25 A 20 VCT @ .50 A 20 VCT @ 1.00 A 20 VCT @ 1.50 A 20 VCT @ 2.80 A	10 V @ .24 A 10 V @ .50 A 10 V @ 1.00 A 10 V @ 2.00 A 10 V @ 3.00 A 10 V @ 5.60 A
HSS24E2 HSS24F2 HSS24G2 HSS24H2 HSS24J2 HSS24L2	HDS24E2 HDS24F2 HDS24G2 HDS24H2 HDS24J2 HDS24L2	2.5 5.0 10.0 20.2 30.0 56.0	24 VCT @ .10A 24 VCT @ .21A 24 VCT @ .42A 24 VCT @ .83A 24 VCT @ 1.25A 24 VCT @ 2.33A	12 V @ .09 .20A 12 V @ .20 .42A 12 V @ .50 .84A 12 V @ 1.0 1.66A 12 V @ 1.6 2.50A 12 V @ 3.0 4.66A
HSS28E2 HSS28F2 HSS28G2 HSS28H2 HSS28J2 HSS28L2	HDS28E2 HDS28F2 HDS28G2 HDS28H2 HDS28J2 HDS28L2	2.5 5.0 10.0 20.2 30.0 56.0	28 VCT @ .09A 28 VCT @ .18A 28 VCT @ .36A 28 VCT @ .72A 28 VCT @ 1.06A 28 VCT @ 2.00A	14 V @ .08 .18A 14 V @ .17 .36A 14 V @ .40 .72A 14 V @.84 1.44A 14 V @ 1.4 2.12A 14 V @ 2.6 4.00A
HSS36E2 HSS36F2 HSS36G2 HSS36H2 HSS36J2 HSS36L2	HDS36E2 HDS36F2 HDS36G2 HDS36H2 HDS36J2 HDS36L2	2.5 5.0 10.0 20.2 30.0 56.0	36 VCT @ .07 A 36 VCT @ .14 A 36 VCT @ .28 A 36 VCT @ .56 A 36 VCT @ .82 A 36 VCT @ 1.56 A	18 V @ .14 A 18 V @ .28 A 18 V @ .56 A 18 V @ 1.12 A 18 V @ 1.64 A 18 V @ 3.12 A
