TRANSFORMATEUR - PUISSANCE - HS-HD

....Caractéristiques

H
S
-
H
D

Puissance disponible de 1.1 à 36 VA.
Montage horizontal sur plaquette.
Conception avec bobines à deux fenêtres.
Tension primaire simple ou double disponible.
Isolation classe B – 130 °C.
Approuvé CSA (LR63462) et reconnu UL(E193917).
Connexion secondaire en parallèle ou en série.
Autre tension primaire et secondaire disponible.

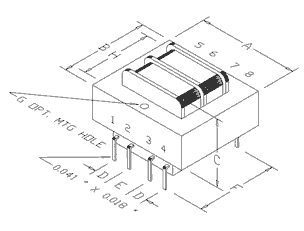

....Dimensions									H S - H D

Dim. VA	A	B	C	D	E	F	H	lbs
1.1	1.38	1.13	0.94	.25	.25	1.20	-	0.17
2.4	1.38	1.13	1.19	.25	.25	1.20	-	0.25
6.0	1.63	1.31	1.31	.25	.35	1.28	1.06	0.44
12.0	1.88	1.56	1.44	.30	.40	1.41	1.25	0.70
20.0	2.25	1.88	1.44	.30	.40	1.60	1.50	0.80
36.0	2.63	2.19	1.56	.40	.40	1.85	2.19 x 1.75	1.10
Dimensions en pouces. Dimension VA avec 4 trous de montage.

ahModèles

HS Primaire simple 115V 50/60V	HD Primaire double 115/230V 50/60Hz

Primaire		Dimension VA	Secondaire (RMS)
HS Num. cat. 115V 50/60Hz simple (6 pattes)	HD Num. cat. 115/230V 50/60Hz double (8 pattes)	Dimension VA	Série	Parallèle
HS1OD2 HS1OE2 HS1OF2 HS1OG2 HS1OH2 HS1OK2	HD1OD2 HD1OE2 HD1OF2 HD1OG2 HD1OH2 HD1OK2	1.1 2.4 6.0 12.0 20.0 36.0	10 VCT @ .11 A 10 VCT @ .25 A 10 VCT @ .60 A 10 VCT @ 1.2 A 10 VCT @ 2.0 A 10 VCT @ 3.6 A	5 V @ .22 A 5 V @ .50 A 5 V @ 1.2 A 5 V @ 2.4 A 5 V @ 4.0A 5 V @ 7.2 A
HS12D2 HS12E2 HS12F2 HS12G2 HS12H2 HS12K2	HD12D2 HD12E2 HD12F2 HD12G2 HD12H2 HD12K2	1.1 2.4 6.0 12.0 20.0 36.0	12.6 VCT @ .09 A 12.6 VCT @ .20 A 12.6 VCT @ .50 A 12.6 VCT @ 1.0 A 12.6 VCT @ 1.6 A 12.6 VCT @ 2.85 A	6.3 V @ .18 A 6.3 V @ .40 A 6.3 V @ 1.0 A 6.3 V @ 2.0 A 6.3 V @ 3.2 A 6.3 V @ 5.7 A
HS16D2 HS16E2 HS16F2 HS16G2 HS16H2 HS16K2	HD16D2 HD16E2 HD16F2 HD16G2 HD16H2 HD16K2	1.1 2.4 6.0 12.0 20.0 36.0	16 VCT @ .07 A 16 VCT @ .15 A 16 VCT @ .40 A 16 VCT @ .80 A 16 VCT @ 1.25 A 16 VCT @ 2.25 A	8 V @ .14 A 8 V @ .30 A 8 V @ .80 A 8 V @ 1.6 A 8 V @ 2.5 A 8 V @ 4.5 A
HS20D2 HS20E2 HS20F2 HS20G2 HS20H2 HS20K2	HD20D2 HD20E2 HD20F2 HD20G2 HD20H2 HD20K2	1.1 2.4 6.0 12.0 20.0 36.0	20 VCT @ .055 A 20 VCT @ .12 A 20 VCT @ .30 A 20 VCT @ .60 A 20 VCT @ 1.0 A 20 VCT @ 1.8 A	10 V @ .11 A 10 V @ .24 A 10 V @ .60 A 10 V @ 1.2A 10 V @ 2.0 A 10 V @ 3.6 A
HS24D2 HS24E2 HS24F2 HS24G2 HS24H2 HS24K2	HD24D2 HD24E2 HD24F2 HD24G2 HD24H2 HD24K2	1.1 2.4 6.0 12.0 20.0 36.0	24 VCT @ .045 A 24 VCT @ .10 A 24 VCT @ .25 A 24 VCT @ .50 A 24 VCT @ .80 A 24 VCT @ 1.5 A	12 V @ .09 A 12 V @ .20 A 12 V @ .50 A 12 V @ 1.0 A 12 V @ 1.6 A 12 V @ 3.0 A
HS28D2 HS28E2 HS28F2 HS28G2 HS28H2 HS28K2	HD28D2 HD28E2 HD28F2 HD28G2 HD28H2 HD28K2	1.1 2.4 6.0 12.0 20.0 36.0	28 VCT @ .04 A 28 VCT @ .085 A 28 VCT @ .20 A 28 VCT @ .42 A 28 VCT @ .70 A 28 VCT @ 1.3 A	14 V @ .08 A 14 V @ .17 A 14 V @ .40 A 14 V @.84 A 14 V @ 1.4 A 14 V @ 2.6 A
HS36D2 HS36E2 HS36F2 HS36G2 HS36H2 HS36K2	HD36D2 HD36E2 HD36F2 HD36G2 HD36H2 HD36K2	1.1 2.4 6.0 12.0 20.0 36.0	36 VCT @ .03 A 36 VCT @ .065 A 36 VCT @ .17 A 36 VCT @ .35 A 36 VCT @ .55 A 36 VCT @ 1.0 A	18 V @ .06 A 18 V @ .13 A 18 V @ .34 A 18 V @.70 A 18 V @ 1.1 A 18 V @ 2.0 A
HS48D2 HS48E2 HS48F2 HS48G2 HS48H2 HS48K2	HD48D2 HD48E2 HD48F2 HD48G2 HD48H2 HD48K2	1.1 2.4 6.0 12.0 20.0 36.0	48 VCT @ .023 A 48 VCT @ .05 A 48 VCT @ .125 A 48 VCT @ .25 A 48 VCT @ .40 A 48 VCT @ .75 A	24 V @ .046 A 24 V @ .10 A 24 V @ .25 A 24 V @.50 A 24 V @ .80 A 24 V @ 1.5 A
HS56D2 HS56E2 HS56F2 HS56G2 HS56H2 HS56K2	HD56D2 HD56E2 HD56F2 HD56G2 HD56H2 HD56K2	1.1 2.4 6.0 12.0 20.0 36.0	56 VCT @ .02 A 56 VCT @ .045 A 56 VCT @ .11 A 56 VCT @ .22 A 56 VCT @ .35 A 56 VCT @ .65 A	28 V @ .04 A 28 V @ .09 A 28 V @ .22 A 28 V @.44 A 28 V @ .70 A 28 V @ 1.3 A
HS120D2 HS120E2 HS120F2 HS120G2 HS120H2 HS120K2	HD120D2 HD120E2 HD120F2 HD120G2 HD120H2 HD120K2	1.1 2.4 6.0 12.0 20.0 36.0	120 VCT @ .01 A 120 VCT @ .02 A 120 VCT @ .05 A 120 VCT @ .10 A 120 VCT @ .16 A 120 VCT @ .30 A	60 V @ .02 A 60 V @ .04 A 60 V @ .10 A 60 V @ .20 A 60 V @ .32 A 60 V @ .60 A
