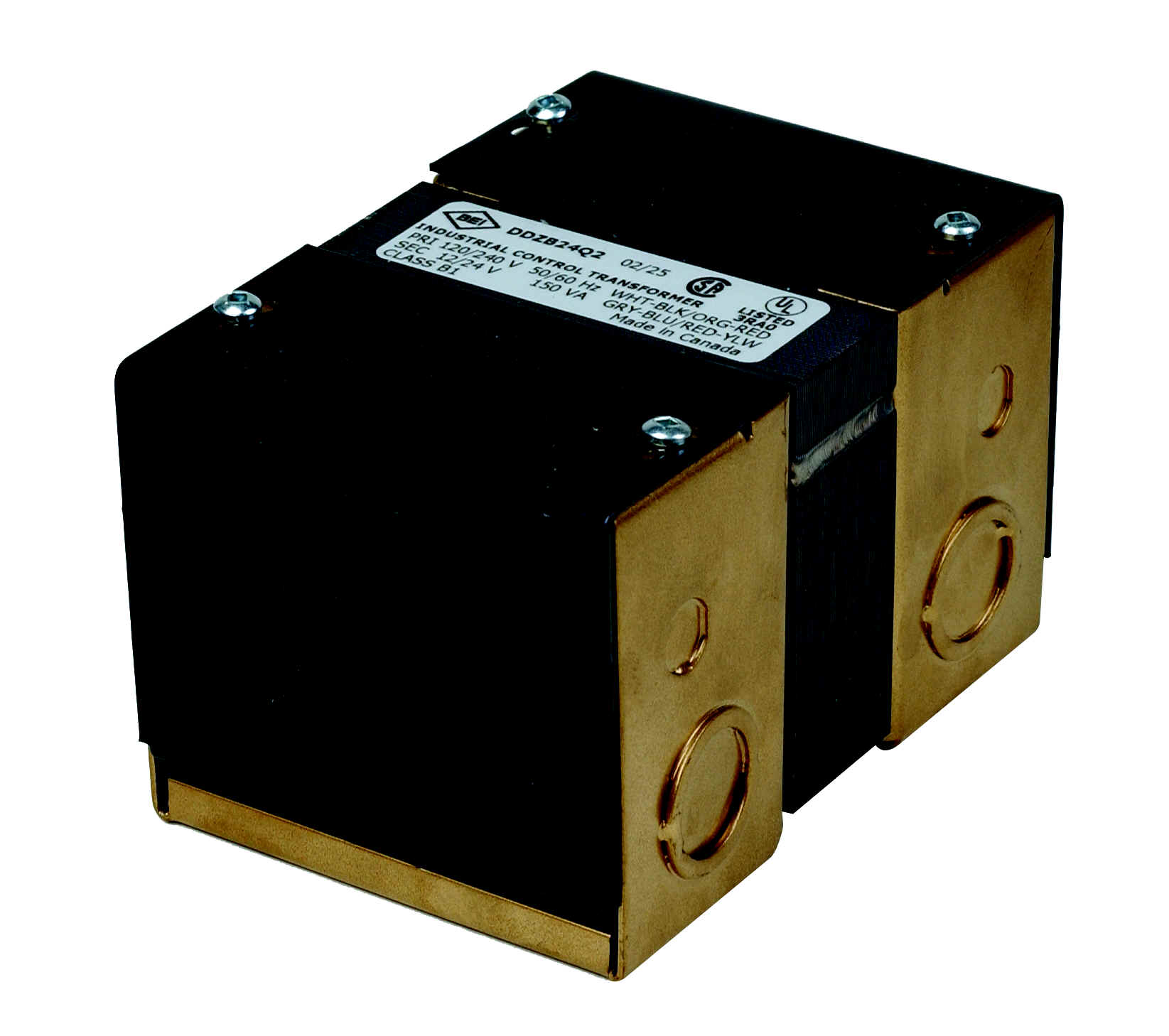

TRANSFORMERS - CONTROL - ENCLOSED - BC

hhCaracteristics			B C
VA size models available from 100 VA to 1000 VA. Class B (130 °C) and F (155 °C) insulation system. CSA approved (LR63462) and UL listed (E193917). Other terminations available. Other Power Rating available.

sdDimensions						B C

VA Size	A	B	C	lbs
100	3.13	5.50	2.75	4.0
150	3.88	5.50	3.38	5.0
200	3.88	5.75	3.38	6.3
250	4.63	6.00	4.00	8.5
350	4.63	7.50	4.00	13
500	4.63	8.50	4.00	18
750	5.38	8.75	4.63	20
1000	5.38	9.25	4.63	26
All dimensions are in inches.

ahModels

Primary Volts	Secondary Volts	100 VA	150 VA	200 VA	250 VA
120/240	12/24 120/240	BC100DR BC100DD	BC150DR BC150DD	BC200DR BC200DD	BC250DR BC250DD
347	12/24 120/240	BC100FR BC100FD	BC150FR BC150FD	BC200FR BC200FD	BC250FR BC250FD
240/480	12/24 120/240	BC100LR BC100LD	BC150LR BC150LD	BC200LR BC200LD	BC250LR BC250LD
600	12/24 120/240	BC100KR BC100KD	BC150KR BC150KD	BC200KR BC200KD	BC250KR BC250KD
