Brownsburg Electronik inc.

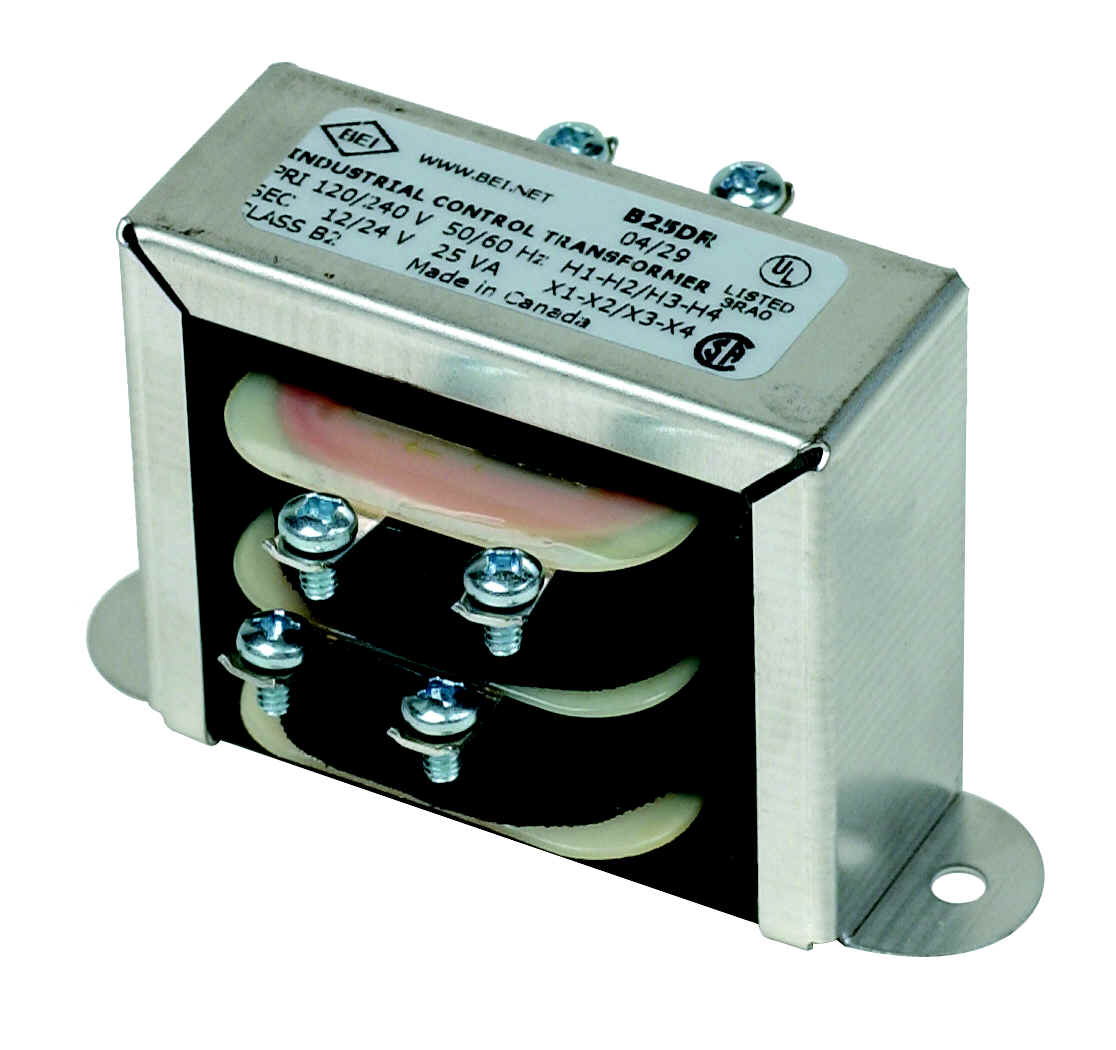

TRANSFORMERS - CONTROL - CHANNEL MOUNTING - B

hhCaracteristics			B
VA size models available from 25 to 75 VA. Economical channel mounting. Class B insulation – 130 °C. CSA approved (LR63462) and UL listed (E193917). Screw type terminals standard. Other terminations available.

PDF document(95Ko)

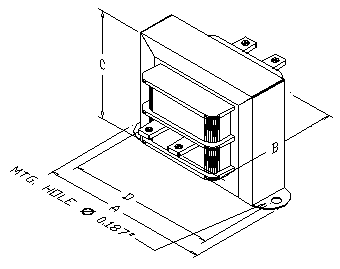

sdDimensions							B

VA Size	A	B	C	D	lbs
25	3.25	2.00	2.00	2.81	1.1
50	3.69	2.30	2.26	3.13	1.7
75	4.00	2.75	2.57	3.56	2.8
All dimensions are in inches.

ahModels

Primary Volts	Secondary Volts	25 VA	50 VA	75 VA
120/240	12/24 120/240	B25DR B25DD	B50DR B50DD	B75DR B75DD
347	12/24 120/240	B25FR B25FD	B50FR B50FD	B75FR B75FD
240/480	12/24 120/240	B25LR B25LD	B50LR B50LD	B75LR B75LD
600	12/24 120/240	B25KR B25KD	B50KR B50KD	B75KR B75KD
