hhCaracteristics			B
VA size models available from 100 VA to 5000 VA. Class B (130 °C) and F (155 °C) insulation system. CSA approved (LR63462) and UL listed (E193917). Screw type terminals std on primary and low current secondary. Copper tab lug with hole on high current secondary. Other terminations available.

PDF document(100 Ko)

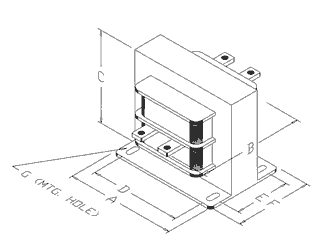

sdDimensions									B

VA Size	A	B*	C	D	E	F	G	lbs
100	3.75	4.00	3.23	3.13	3.00	3.63	0.221 x 0.375	4.0
150	3.75	4.25	3.23	3.13	3.00	3.63	0.221 x 0.375	5.0
200	3.75	4.75	3.23	3.13	3.00	3.63	0.221 x 0.375	6.3
250	4.50	5.00	3.86	3.75	3.00	4.50	0.221 x 0.375	8.5
350	4.50	6.00	3.86	3.75	3.50	5.00	0.221 x 0.375	13
500	4.50	7.75	3.86	3.75	4.62	5.75	0.281 x 0.625	18
750	5.25	7.75	4.48	4.38	4.50	5.75	0.312 x 0.687	20
1000	5.25	8.75	4.48	4.38	5.50	6.75	0.312 x 0.687	26
1500	7.50	8.50	6.63	6.75	3.75	5.00	0.375 x 0.687	34
2000	7.50	9.50	6.63	6.75	4.75	6.00	0.375 x 0.687	48
3000	9.00	10.00	8.13	7.50	4.00	5.25	0.375 x 0.687	60
5000	9.00	12.50	8.13	7.50	6.00	7.25	0.375 x 0.687	108
All dimensions are in inches *Dimensions 'B' includes terminals.

ahModels
